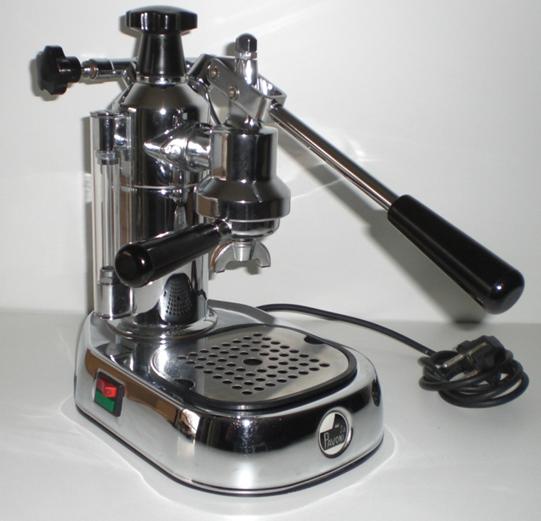

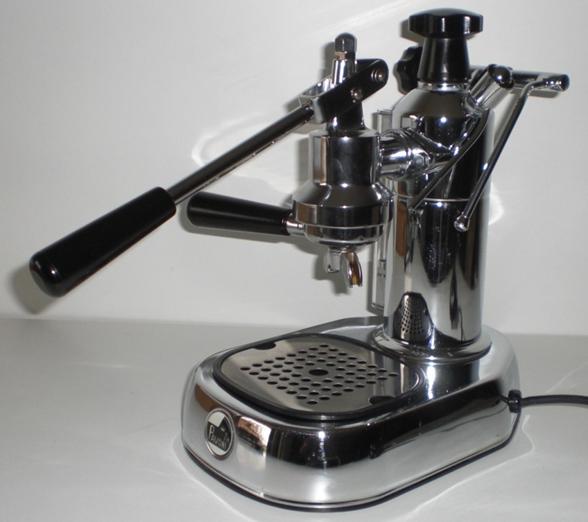

EUROPICCOLA EL – March 1999 |
KEY FEATURES

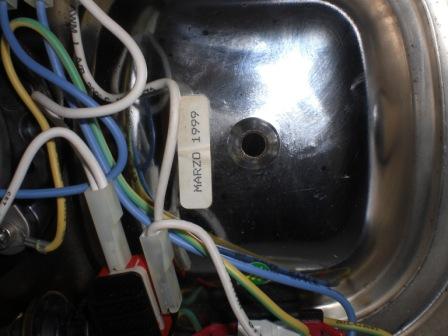

The machine was produced in
March 1999 (signed under the base)
Compared to the previous model (1996) presents the following
differences:
• Plastic cap boiler
• protection sight glass inserted in a plastic joint
• Teflon piston
• resistance new type of metal
• switch unprotected rubber
|

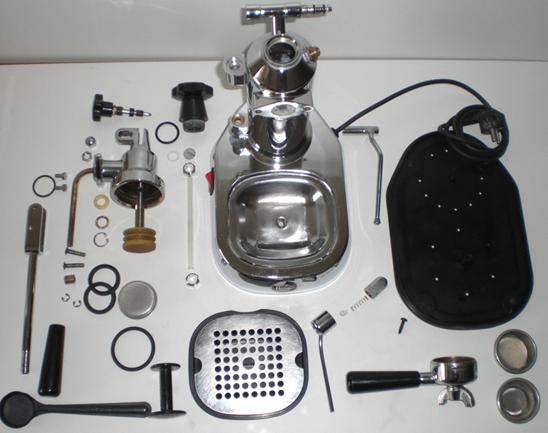

DETAILS |
||
|
|
|
|
|
Plastic cap boiler |
Body boiler |
Sight glass |
|
|
|
|
|
Steam tap complete |

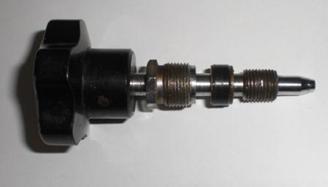

Steam tap body |

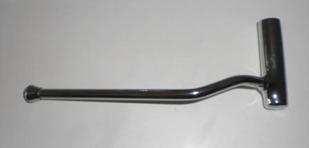

Steam pipe |
|
|
|
|
|
Sight glass cover |
Group complete |

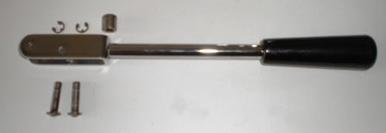

lever |
|
|
|
|
|

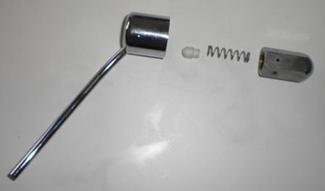

Safety valve |

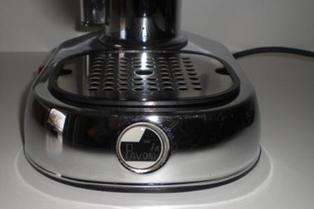

Base chromed |
Heating element, thermostat (154°C),
pressurestat |
|
|
|
|
|
Red light (switch on) and green light (pressurestat on) |
Logo sticker |

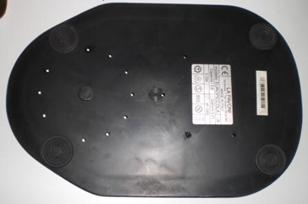

Black plastic base plate |
|
|
|
|
|

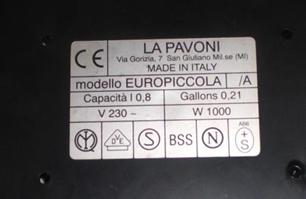

plate |
Chrome grid and plastic drip tray |

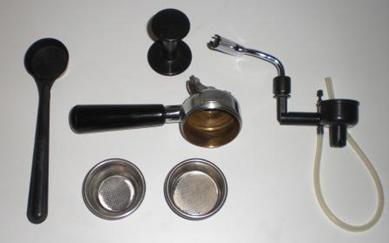

Holder filter, filter basket, tamper,
measuring spoon, cappuccino automatic |
|
