PROFESSIONAL PL - january 1998 |
KEY FEATURES
The machine was produced in January
1998 (as reported under the base).
Compared to the previous model
(1996) presents the following differences:
• plastic cap boiler
• sight level glass with plastic protection without
screws
• Teflon piston
• metal heating element
•
green switch
|
DETAILS |
||
|
|
|
|
|
Plastic cap |
Boiler
increased and group fixed with 2 bolts |
Pressure gauge |
|
|
|
|
|

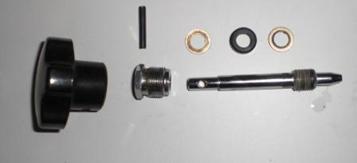

Steam tap |
Steam
tap body with auto frother |
Steam pipe |
|
|
|
|
|
Plastic
protection of sight glass level |
Teflon piston |
Holder
filter and filter baskets with 58 mm diamter |
|
|
|
|
|
Safety valve with spring |
Base
chromed with drip tray |
Electric
diagram, heating element fixed with 3 bolts to the brass ring, pressurestat,
thermostat |
|
|
|
|
|

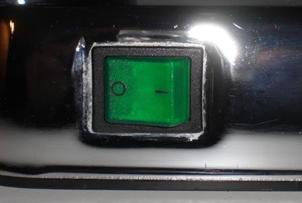

Green Switch |
Logo sticker |
Plastic sub-base |
|
|
|
|
|
Techinical plate |
Chrome grid |
Plastic
grid and drip tray |
|
