ARRAREX
VAM - CARAVEL
The machine represents the evolution of the model VAM to the model Caravel.
The effigy on the right side is VAM but the sticker on the front is Caravel.

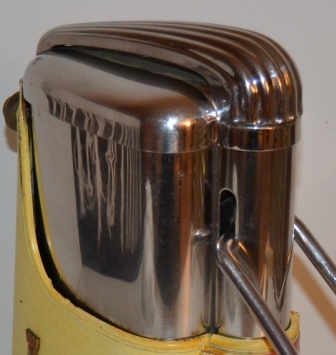

Among the various details, the indicator light and the 6 suctions cups underneath the base are typical of the VAM, the cover and the lever typical of Caravel.
|
Technical specification: |
|
|
capacity voltage power dimensions (HxWxD) weight |
0,8 l 220V 600 W 32 cm x 18 cm x 27 cm 3,5 kg |
The machine can be easily disassembled without tools.
|
DETAILS
|
||
|
|
|
|
|
button to release the boiler |
boiler with piston housing |
drip tray and red light of spherical shape |
|
|
|
|
|
shower with spring
|
holder filter |
coverage with 2 rubber feet and 6 suckers
|
|
|
|
|
|
external element to
the boiler |
thermostat |
schematic electric |
(sent to Sam Giles - New Zealand)
